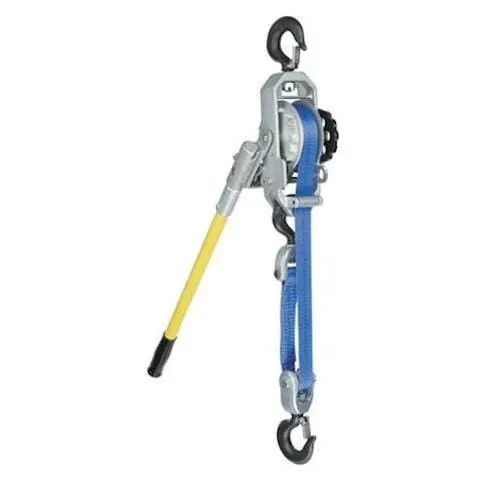

Little Mule 2-Ton Capacity Lineman's Strap Hoist
The Little Mule Lineman's Strap Hoist is high quality and dependable, making it one of the favorites of linemen across the nation. This strap hoist is designed for rugged use with dependability in mind.
Features and Benefits:
Non-Conductive Handle
Fiberglass handle with polyester webbing provides added non-conductive material when using proper hot line handling techniques. Some models also available with hot stick ring on handle.
Overload Feature
Solid fiberglass handle, with replaceable tips, bends to alert operator of a possible overload.
Hooks and Gate Latches
All hooks swivel 360° and are equipped with latches. Optional hooks with gates can also be added.
Positive Load Holding
Double interlocking pawls assure one pawl is engaged at all times. Dual pawl springs provide unsurpassed reliability.
Safe Design
Thumbscrews used to secure the handle are pegged and cannot be backed out. Competitive units use butterfly nuts which can cause the handle to come loose.
Open Design
The open design allows for easy inspection and cleaning.
Lightweight and Rugged
These hoists are made with cast aluminum frames as well as corrosion-resistant stainless steel springs and frame shafts. Roller shafts are stainless steel plated. All rotating shafts are mounted on bronze bushings for reduced wear.
Easy Load Positioning
Utilizing a double pawl system, this multiple pawl stops for precise load adjustment.
Easy to Operate
Self-storing web drum provides compact operation. Non- conductive winding wheel provided for quick take-up or positioning of slack webbing.
4:1 Design Factor
Meets or exceeds minimum 4:1 design factor and all requirements of ASME/ANSI Standard B-30.21. All units tested at 125% of rated load.
Adjustable Capacity Hoist Option
Double-reeved hook block configuration increases capacity. Easily removable sheave block with a quick disconnect design allows the hoist to be converted for double or single-line use.
**LEAD TIME FOR THIS ITEM IS 2-3 WEEKS**
SKU: 344C
